Asset tree

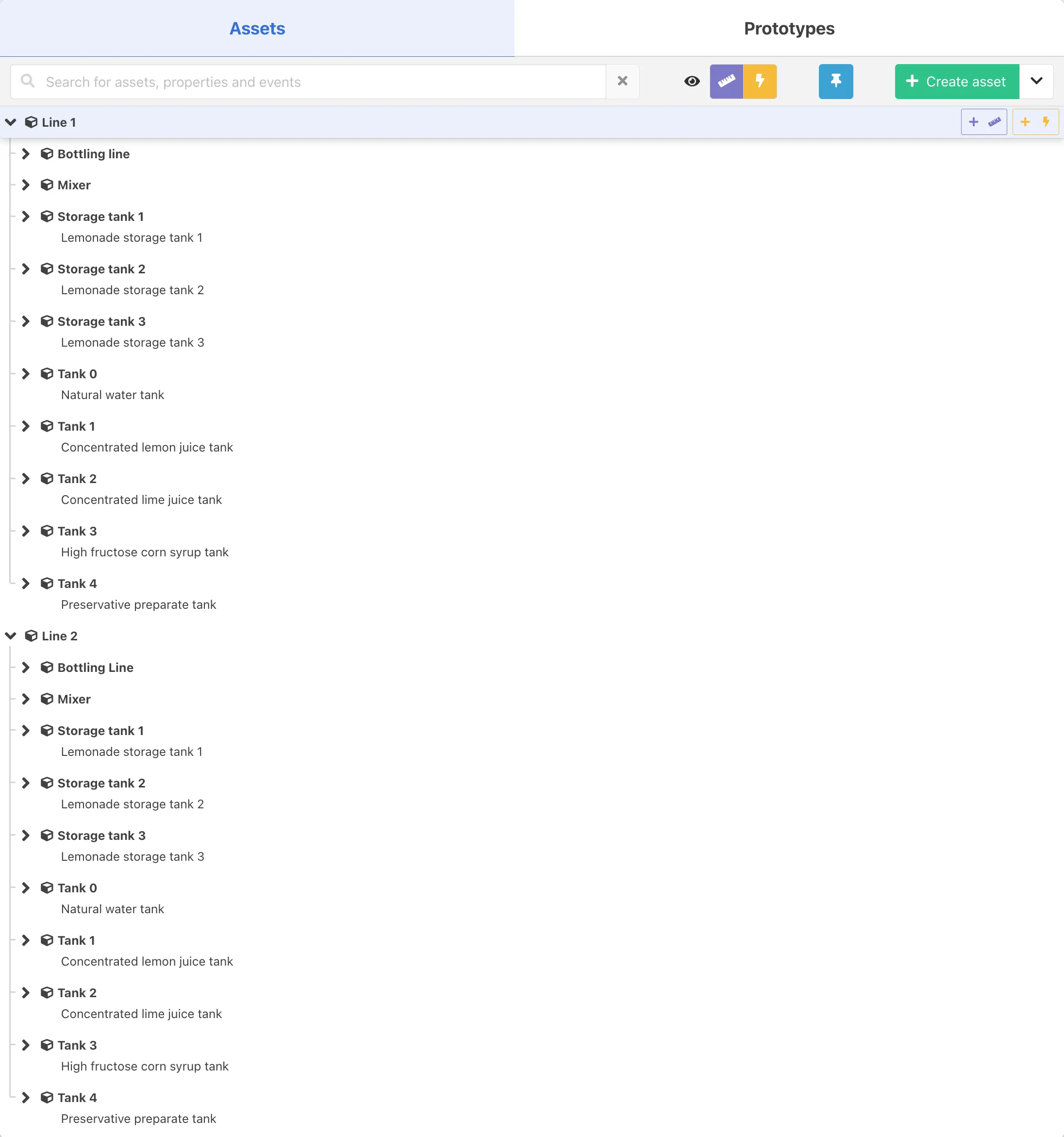

prerequisites before importing, make sure your measurements from the faketory are loaded with the same names as in the file listed below (tab asset properties, column g) this should be the case if you followed the docid\ myrfsdthxlh5xqk06ik m if not, configure the asset structure and asset properties manually bulk import of assets and asset properties the quickest way to get started is to download the file attached below, and importing that by going to the assets tab in factry historian there, click the dropdown button next to the + create asset button and select import from excel manual configuration of assets alternatively, use the + create asset button recursively to create lines 1 and 2 as root nodes without the following children line 1 └── bottling line └── mixer \| └── input pump 1 \| └── input pump 2 \| └── input pump 3 \| └── input pump 4 └── storage tank 1 \| └── input pump └── storage tank 2 \| └── input pump └── storage tank 3 \| └── input pump └── tank 0 \| └── pump └── tank 1 \| └── pump └── tank 2 \| └── pump └── tank 3 \| └── pump └── tank 4 └── pump line 2 └── bottling line └── mixer \| └── input pump 1 \| └── input pump 2 \| └── input pump 3 \| └── input pump 4 └── storage tank 1 \| └── input pump └── storage tank 2 \| └── input pump └── storage tank 3 \| └── input pump └── tank 0 \| └── pump └── tank 1 \| └── pump └── tank 2 \| └── pump └── tank 3 \| └── pump └── tank 4 └── pump in factry historian's asset page, this will be represented like this manual configuration of asset properties click the purple add property button and attach the following asset properties below we list all assets of line 1 bottling line asset property measurement name filled bottles simulator/line 1/b1/filledbottles packages in batch simulator/line 1/b1/packagesinbatch running simulator/line 1/b1/running labeled bottles simulator/line 1/b1/labeledbottles mixer asset property measurement name emptying simulator/line 1/m1/emptying filling simulator/line 1/m1/isfilling needs cleaning simulator/line 1/m1/needscleaning running simulator/line 1/m1/running temperature simulator/line 1/m1/temperature rpm deviation simulator/line 1/m1/calcrpmdeviation level simulator/line 1/m1/m1t/level temperature deviation simulator/line 1/m1/calctemperaturedeviation mixing simulator/line 1/m1/ismixing current recipe simulator/line 1/m1/currentrecipe rpm simulator/line 1/m1/rpm energy usage simulator/line 1/m1/energyusage mixer input pump x asset property measurement name energy usage simulator/line 1/m1/px/energyusage amount to transfer simulator/line 1/m1/px/amounttotransfer rpm simulator/line 1/m1/px/rpm flowrate simulator/line 1/m1/px/flowrate running simulator/line 1/m1/px/running storage tank x asset property measurement name level simulator/line 1/s1/level needs cleaning simulator/line 1/s1/needscleaning storage tank x > input pump y asset property measurement name flowrate simulator/line 1/py/flowrate rpm simulator/line 1/py/rpm running simulator/line 1/py/running amount to transfer simulator/line 1/py/amounttotransfer energy usage simulator/line 1/py/energyusage tank x asset property measurement name level simulator/line 1/tx/level tank x > (input) pump y asset property measurement name energy usage simulator/line 1/py/energyusage running simulator/line 1/py/running amount to transfer simulator/line 1/py/amounttotransfer flowrate simulator/line 1/py/flowrate rpm simulator/line 1/py/rpm
