External validation

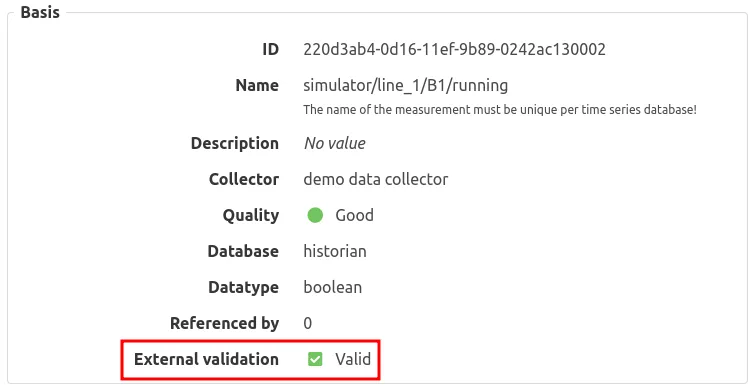

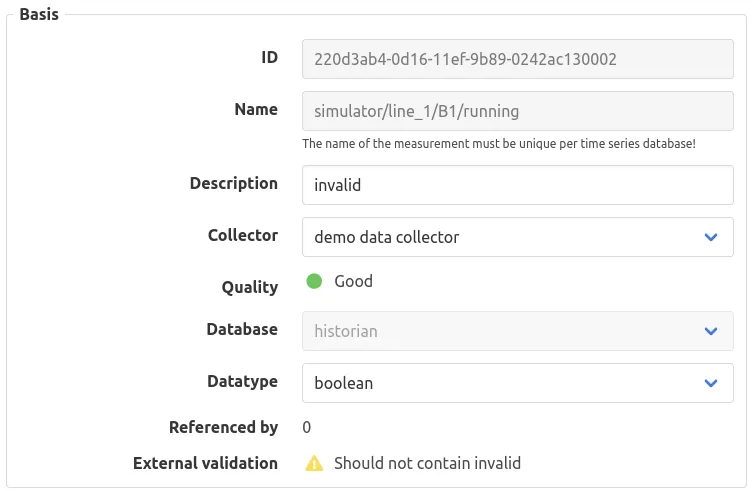

configuration available at configuration > external validation , are the following fields activate external validation description activate the switch to enable the validation validation severity description how historian should handle invalid measurements warning when selected the user will be presented with a warning when creating or updating a measurement with invalid settings the user will still be able to create or update the measurement error when selected the user will be presented with an error when creating or updating a measurement with invalid settings the user will have to correct the settings to be able to proceed endpoints description here you will have to enter a valid http(s) url endpoint to which the historian server will present measurements for validation via a post request with an application/json body as described here you can add multiple endpoints measurements that are invalidated by an endpoint will be presented to the subsequent endpoint a measurement will be regarded as valid if one endpoint validates it if a measurement fails validation for all endpoints a warning or error will be presented to the user examples example of a validated measurement example of an invalid measurement how tos creating a validation server docid 8v89jxk8kfjjqbzl8srfa
